IP + DYNAMIC + JOHNSON CONTROLS Speed for a Powerful loT Future

Yesterday's 20th Century DDC "Network"

Today's JCI – 21st Century loT

The transition from serial communications to a high speed, monitored, IoT focused IP communications creates opportunities for advances in system reliability, comfort with energy awareness and advanced diagnostics with full time fault detection.

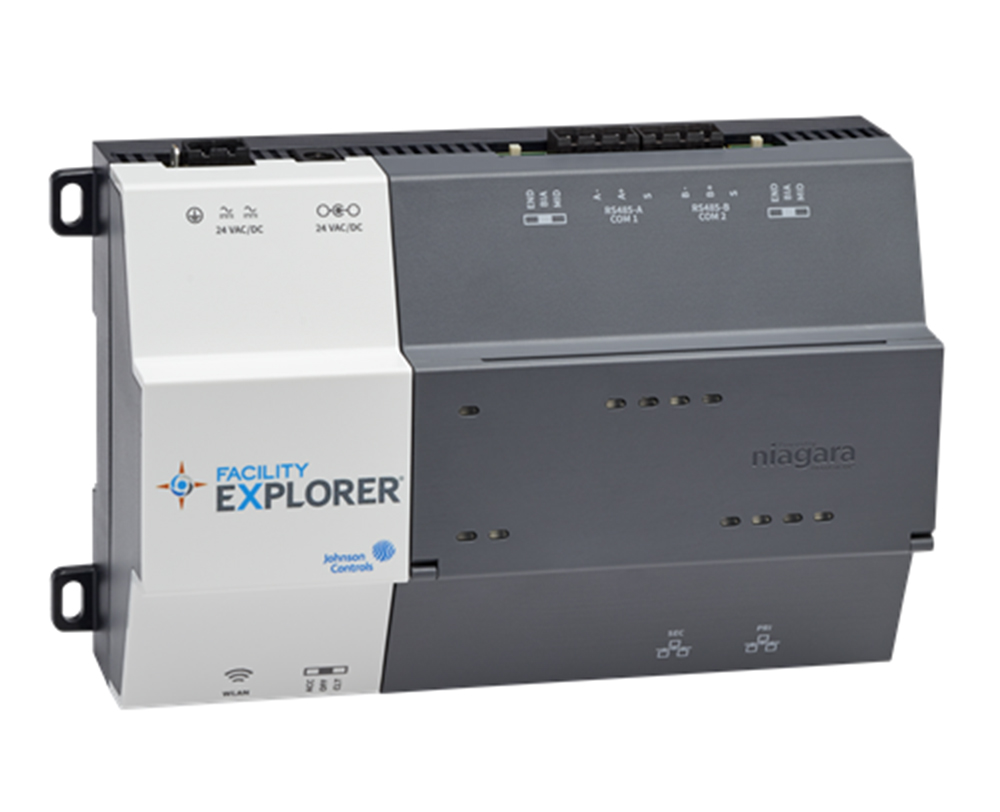

John Controls FX-80

The FX-80 – Powering your Network

  • Network-wide coordination for single or multiple sites
  • Easy to program and commission
  • Supports IP level networking communications
  • Seamless data sharing across your network
  • Remote access via multiple communication technologies
  • Easy to see, easy to use graphic user interface
  • Integrated energy awareness and tracking

FX-PCA's – Power for your Plant Equipment

  • Designed to support BACnet® / IP Communications
  • Interoperable with BAS products that use the widely accepted BACnet® standard
  • Universal Inputs, Configurable Outputs, and Point Expansion Modules
  • FX-PCX Expansion Input/Output (I/O) Modules
  • Supports integrated NS Series Network Sensors
  • On board testing with seperate simulation and commisioning modes
  • FX-PCV's integrate seamlessly into the Facility Explorer® (FX) system
Johnson Controls FX-PCA
Johnson Controls FX-PCX

FX-PCX's – Power at the Edge

  • Designed to support BACnet/IP LOOP communications
  • BACnet Testing Laboratories™ (BTL) Listing
  • Bluetooth® Wireless Commissioning Interface
  • Dozens of integrated room sensor combinations
  • Auto-Tuned Control Loops
  • Increased memory for on board trending / alarming / energy tracking
  • Wireless Field Controller (FC) or Sensor/Actuator (SA) Bus Interface

GLAS® Smart Thermostat

  • BACnet Testing Laboratories™ (BTL) Listing
  • Bluetooth® Wireless Commissioning Interface
  • Dozens of integrated room sensor combinations
  • Auto-Tuned Control Loops
  • Increased memory for on board trending / alarming / energy tracking
Johnson Controls GLAS Smart Thermostat

Speed and Power – Advantages for your Facility – NOW and in the Future

Network Reliability

  • IP based networks combined with smart aware diagnostics see outages as they happen
  • Location determination is greatly simplified, it is what link not "somewhere on the third floor"

Monitored Comfort

  • Occupancy, fresh air content, humidity and lighting all integrated and working together
  • Monitor and alert on failures - prevent failures via periodic automatic season based self tests

Energy Awareness

  • Un-occupied lighted or conditioned space is your biggest energy waster - GET CONTROL
  • Your building knows how much energy it should use every day of the year - GET CONTROL

Trending to Analytics

  • Diagnostic trending is a powerful tool - preformatted complex trends are diagnostics done right
  • Ready for Analytics - JCI means data is tagged and ready for your future. We can show the way.

Proven Performance

  • Project commissioning tools that are field proven and ready for your buildings seasonal recommissioning
  • Matrix reporting – testing that matches your current testing to your "brand new building"
